Introducing the Canthus Pool Heat Pump, designed to provide reliable and energy-efficient heating for your swimming pool, ensuring comfort and enjoyment all year round. With advanced technology and excellent performance, this heat pump is the perfect solution for extending your swimming season and keeping your pool at the ideal temperature. Its durable construction and energy-efficient operation make it a cost-effective choice for reliable, long-term pool heating.
Swimming Pool Heat Pump Technical Specification
| 12 kW | 21 kW | 35 kW | 50 kW | 70 kW | 120 kW | 140 kW | |
|---|---|---|---|---|---|---|---|
| Total Input Load | 3 kW/hr | 5 kW/hr | 8 kW/hr | 13 kW/hr | 16 kW/hr | 27 kW/hr | 32 kW/hr |
| Compressor Input Load | 2.6 kW/hr | 4.6 kW/hr | 7.2 kW/hr | 12.4 kW/hr | 15.2 kW/hr | 26.2 kW/hr | 31 kW/hr |
| Compressor Details | Herm. Sealed Scroll (Copeland ZP series) | ||||||
| Heat Output | 12 kW | 21 kW/hr | 35 kW/hr | 55 kW/hr | 72 kW/hr | 125 kWhr | 144 kW/hr |
| COP | 4.0 | 4.2 | 4.2 | 4.9 | 4.9 | 4.9 | 4.9 |
| Heat Exchanger | Shell & Tube HEX (100 % titanium tube) | ||||||
| Evaporator | Tube-fin HEX (Blue fins with Copper tube) | ||||||
| Fans | Axial Fan- Insulated (Hi-cool) | ||||||
| Water Operating Temperature Range | 10°C to 40°C | ||||||
| Air Operating Temp Range | 0°C to 45°C | ||||||
| Water Pipe Material | CVC | ||||||
| Inlet/Outlet Connection Size | 38 mm | 50 mm | 50 mm | 50 mm | 50 mm | 65 mm | 65 mm |
| Total Running Load | 9.8 Amps | 9 Amps | 11 Amps | 19 Amp | 32 Amps | 39 Amps | 49 Amps |
| Refrigerant Type | R-22/R407 | ||||||
| Cabinet Type | Powder Coated Rust proof | ||||||
| Frame Material | Powder Coated C channel (3 inch) | ||||||
| Weight aprox. | 69 kg | 115 kg | 130 kg | 340 kg | 410 kg | 620 kg | 1050 kg |
| Sound Power | <68 dbA | <68 dbA | <68 dbA | < 72 dbA | <72 dbA | < 72 dbA | < 72 dbA |
| Heat Pump Protection | HP & LP protection Current Leakage Protection Phase change protection No Flow Protection | ||||||
| Pressure Switch | differential pressure switch (Danfoss make) | ||||||
| Control Panel | Wifi- Controlled Printed Circuit board Controller | ||||||
Consumes 75% less energy than a typical pool heater
Experience exceptional efficiency with our swimming pool heat pumps, delivering up to four times the performance of traditional pool heaters. Designed to suit pools of all sizes, they provide optimal heating while significantly reducing energy consumption. With their reliable performance and cost-saving benefits, they are the ideal choice for both residential and commercial pools.
Custom Comfort, Enhanced Protection
Our swimming pool heat pump features advanced controls for personalized temperature settings, ensuring your ideal warmth. It is intelligently designed to protect against issues such as water flow disruptions or power outages, providing effortless operation and long-lasting reliability. With its robust design and smart technology, it guarantees consistent performance for optimal pool comfort year-round.
Defy the cold, dive into warmth with auto defrost
Keep your pool warm all year round with our Swimming Pool Heat Pump’s auto-defrost feature. Designed to protect the pump in cold weather and ensure continuous operation during winter, it guarantees a consistently heated pool regardless of the season. Enjoy uninterrupted comfort and peace of mind, even in the chilliest conditions. With its reliable performance and weather-resistant design, you can count on your pool’s comfort throughout the year.
Reliable Warmth, Season After Season
Experience the robustness of our swimming pool heat pump, crafted with a powder-coated steel frame. This design is meticulously engineered to withstand all weather conditions, ensuring your pool remains warm and inviting no matter the climate. Built for durability and performance, it offers long-lasting reliability, making it the perfect choice for year-round comfort.

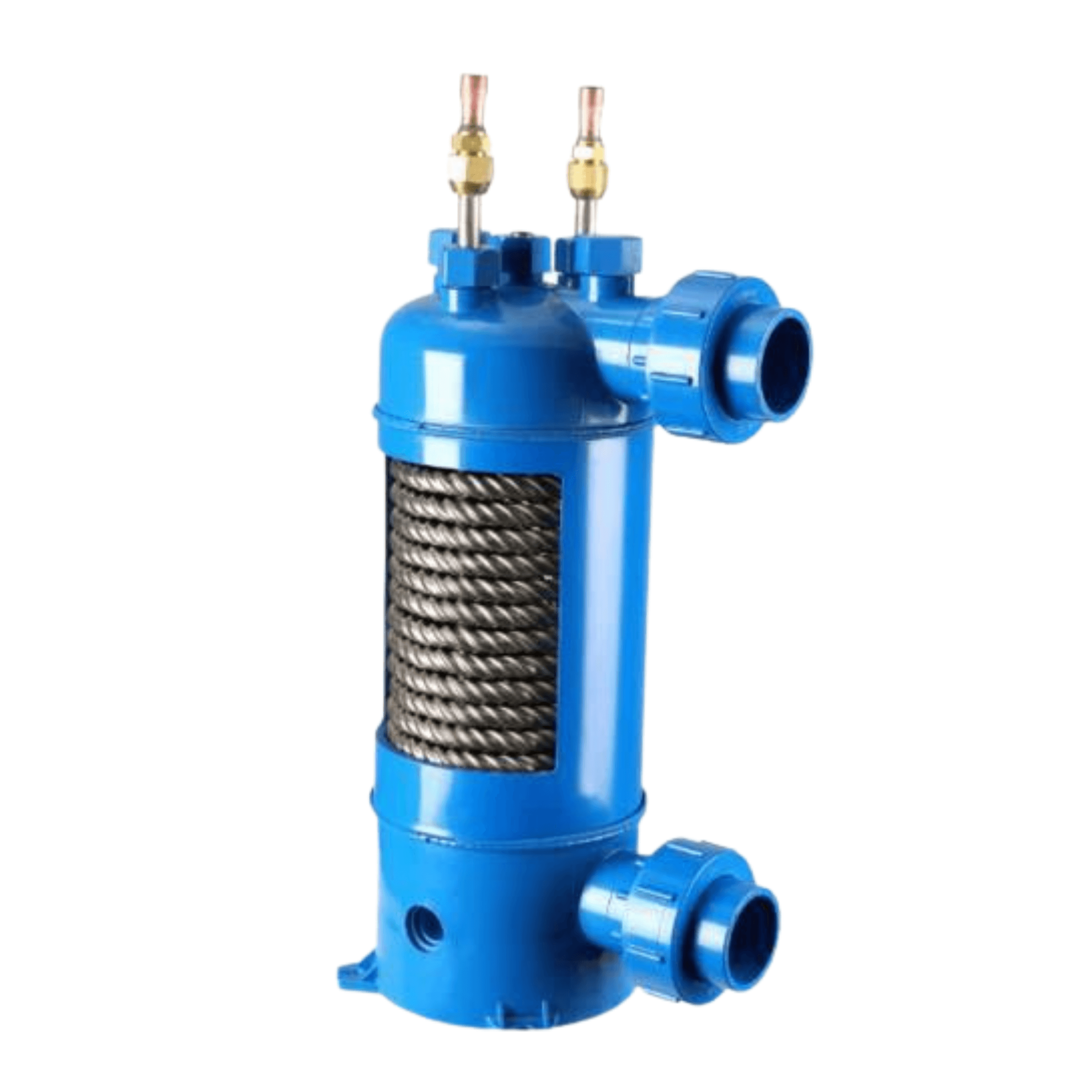

100 % Titanium Heat Exchanger
Discover the efficiency of titanium heat exchangers in our pool heat pumps. Renowned for their corrosion resistance and longevity, they provide rapid, energy-efficient heating for both chlorine and saltwater pools. Durable and low maintenance, these eco-friendly exchangers offer a cost-effective solution, ensuring long-term savings and an enhanced swimming experience. With superior heat transfer and reliability, they contribute to a consistently enjoyable pool environment throughout the year.
Swimming Pool Heat Pump Selection Chart
Outdoor Pool | Avg Depth 4.5 ft
Heat Pump Heating Capacity (kW)
Indoor Pool | Avg Depth 4.5 ft
Heat Pump Heating Capacity (kW)
Pool Heat pump Installation Diagram
